[AWS] Solutions Architect Associate 실습 25일차 - 고가용성 & 스케일링성, ELB(Elastic Load Balancing)

1. Scalability & High Availability

• Scalability(확장성) means that an application / system can handle greater loads by adapting.
• There are two kinds of scalability
•  - Vertical Scalability
•  - Horizontal Scalability (=elasticity) 탄력성, 수평 확장성
• Scalability is linked but different to High Availability ( 확장성 != 고가용성)



2. Vertical Scalability - 수직 확장성

신입을 경력직으로 확대한 것과 같다

• Vertically scalability means increasing the size of the instance
• For example, your application runs on a t2.micro
• Scaling that application vertically menas running it on a t2.large
• Vertical Scalability is very common for non-distributed systems, such as a database. (분산되지 않은 시스템)
• RDS, ElastiCache are services that can scaale vertically. (하위 인스턴스의 유형을 업그레이드 해 수직적으로 확장할 수 있는 시스템)
• There's usually a limit to how much you can vertically scale (hardware limit)



3. Horizontal Scalability - 수평 확장성

• Horizontal Scalability means increasing the number of instances / systems for your application
• Horizontal scaling implies distributed systems.
• This is very common for web applications / modern applications
• It's easy to horizontally scale thanks the cloud offerings such as Amazon EC2



4. High Availability - 고가용성

https://www.stackscale.com/blog/high-availability/

High Availability or HA eliminates single points of failure in IT systems to minimize the impact of a disruption in systems, databases and applications. Thus reducing the risk of damaging productivity and losing revenue. Redundancy and automatic failure detection are key features to achieve HA

• High Availability usually goest hand in hand with horizontal scaling
• High availability means running your application / system in at least 2 data centers (==Availability Zones)
• The goal of higgh availability is to survive a data center loss
• The high availability can be passive (for RDS Multi AZ for example)
• The high availability can be active (for horizontal scaling)\



5. High Availavility & Scalability For EC2

Vertical Scaling

• Increase instance size (= scale up / down)
• Form: t2.nano - 0.5G of RAM, 1 vCPU
• To: u-l 2tb1.metal - 12.3 TB of RAM, 558 vCPUs

Horizontal Scaling

• Increase number of instanes (= scale out / in)
• - Auto Scaling Group
• - Load Balancer

High Availability

• Run instances for the same application across multi AZ
• - Auto Scaling Group multi AZ
• Load Balancer multi AZ



6. Elastic Load Balancing (ELB)

6-1. What is load balancing?

• Load Balances are servers that forward traffic to multiple servers (e.g., EC2 instances) downstream
• The more users you have, the more the load is going to be balanced across EC2 Instance
• But your users do not know which Instances are connected to, they just know that they have to connect Elastic Load Balancer which gives you one end point of connectivity only.

6-2. Why use a load balancer?

• Spread load across multiple downstream instances
• Expose a single point of access (DNS) to  your application
• Seamlessly handle failures of downstream instances
• Do regular health checks to your instances
• Provide SSL termination (HTTPS) for your websites
• Enforce stickiness with cookies
• High availability across zones
• Seperate public traffic from private traffic



6-3. Why use an Elastic Load Balancer?

• An Elastic Load Balancer is a managed load balancer
• - AWS guarantees that it will be working
• - AWS takes care of upgrades, maintenance, high availability
• - AWS provides only a few configuration knobs
• It costs less to setup your own load balancer but it will be a lot more effort on your end
• It is integrated with many AWS offerings / services
• - EC2, EC2 Auto Scaling Groups, Amazon ECS
• - AWS Certificate Manager (ACM), CloudWatch
• - Route 53, AWS WAF, AWS Global Accelerator

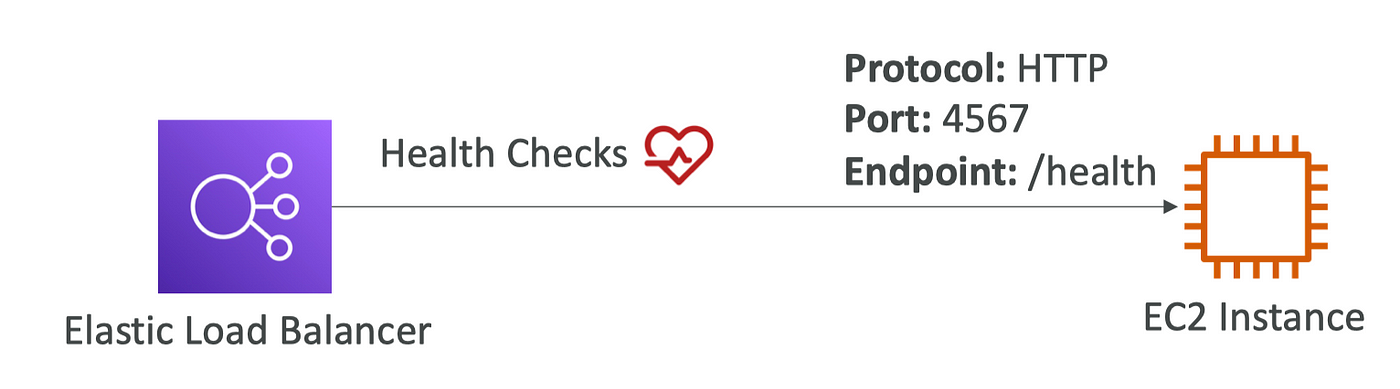

6-4. Health Checks

• Health Checks are crucial for Load Balancers
• They enable the load balancer to know if instances if forwards traffic to are available to reply to requests
• The health check is done on a port and a route (/health is common)
• If the response is not 200 (OK), then the instance is unhealthy

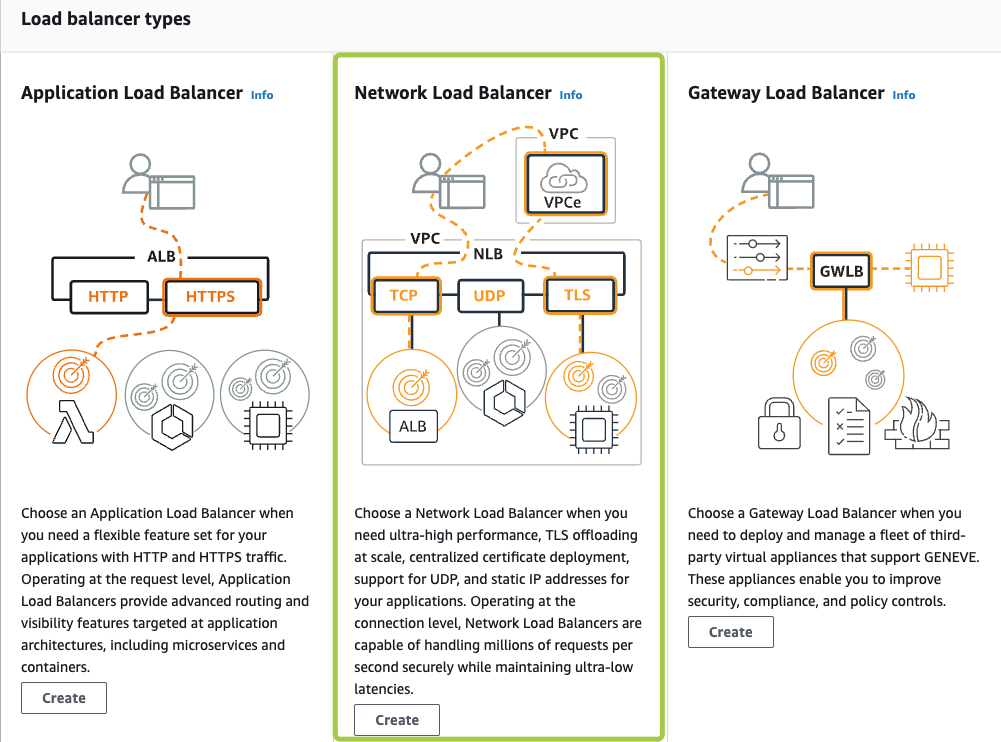

6-5. Types of load balancer on AWS

AWS has 4 kinds of managed Load Balancers

https://aws.plainenglish.io/a-deep-dive-into-aws-elastic-load-balancing-elb-e6e413487d50



Classic Load Balancer (v1 - old generation) - 2009 - CLB

• - HTTP, HTTPS, TCP, SSL (secure TCP)

Application Load Balancer (v2 - new generation) - 2016 - ALB

• - HTTP, HTTPS, WebSocket

Network Load Balancer (v2 - new generation) - 2017 - NLB

• TCP, TLS (secure TCP), UDP

Gateway  Load Balancer - 2020 - GWLB

• Operates at layer 3 (Network layer) - IP Protocol

Overall, it is recommended to use the newer generation load balancers as they provide more features.
Some load balancers can be setup as internal (private) or external (public) ELBs.





6-6. Load Balancer Security Groups

소스에서 0.0.0.0/0은 어디서든 접근 가능하다는 뜻이다.
